Bentonite Mill Production Line

2020-11-24

Bentonite is a water-bearing clay mineral mainly composed of montmorillonite. Due to its special properties, such as swelling, adhesion, adsorption, catalysis, thixotropy, suspension and cation exchange, bentonite is known as the "universal" clay due to its good physical and chemical properties. It can be used as binder, suspending agent, thixotropic agent, stabilizer, purifying and decolorizing agent, filler, feed, catalyst, etc. It is widely used in metallurgy, petroleum, foundry, food, chemical, environmental protection and other industrial sectors.

The bentonite mill (three-ring medium-speed superfine mill) produced by Shanghai Clirik Machinery Co., Ltd. can effectively process bentonite. This machine has the characteristics of one-time powdering, low power consumption, and more environmentally friendly skills. .Currently it is a grinding machine for bentonite processing.

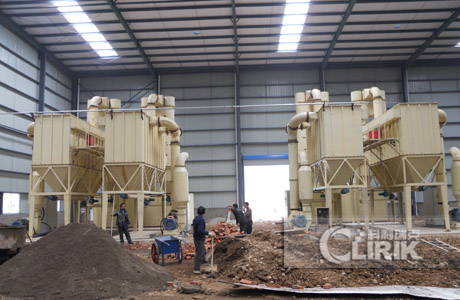

The bentonite mill three-ring medium-speed superfine mill
The bentonite mill :three-ring medium-speed superfine mill


Bentonite grinder (three-ring medium-speed superfine grinder) is mainly suitable for processing superfine powder of non-flammable and explosive brittle materials with medium and low hardness, Mohs hardness ≤6, such as calcite, chalk, Limestone, dolomite, carbon black, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite, vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, Alumite, graphite, fluorite, phosphate rock, potash ore, pumice and other more than 100 materials, processed by bentonite mill (three-ring medium-speed ultra-fine mill), the finished product has a particle size of 325-3000 mesh Adjust arbitrarily between time, the output can reach 0.5-12 tons per hour.


1. The equipment composition of the bentonite mill (three-ring medium-speed superfine mill):


Bentonite pulverizerThe complete set of grinding machines includes hammer crusher, bucket elevator, storage bin, vibrating feeder, mill main machine, frequency conversion classifier, double cyclone dust collector, pulse dust removal system, high pressure fan , Air compressor, electrical control system.


2. Working principle of bentonite mill (three-ring medium-speed superfine mill):


When working, the main motor of the pulverizer drives the main shaft and the turntable to rotate through the reducer, and the roller pins on the edge of the turntable drive dozens of grinding rollers to roll in the grinding ring raceway.

The bentonite raw mineral material is crushed into small particles by a hammer crusher, and then sent to the storage bin by the elevator, and then sent through the vibrating feeder and the inclined feeding pipe to evenly send the bentonite particles to the bulk material tray on the upper part of the turntable .

The bentonite particles are scattered to the periphery of the circle under the action of centrifugal force, and fall into the raceway of the grinding ring. They are impacted, rolled, and ground by the ring rollers. After three-layer ring processing, they become bentonite powder. Air is sucked into the machine and the crushed bentonite powder is brought into the classifier.

The rotating impeller in the classifier makes the coarse bentonite powder fall back and regrind, and the fine powder that meets the requirements enters the cyclone powder collector with the airflow and is discharged by the discharge valve at the lower part of it, which is the final ultrafine bentonite powder, with a small amount The airflow of fine dust is purified by the pulse dust collector and then discharged through the fan and muffler.

bentonite grinder


3. The performance characteristics of bentonite mill (three-ring medium-speed superfine mill):


HGM series bentonite ultra-fine grinding machine is a fine powder and ultra-fine grinding machine produced by our company. It is a base for producing ultra-fine grinding mills. Compared with many other grinding machines, it has advantages:

●High efficiency

Under the condition of the same fineness of the bentonite powder and the same motor power, the output of the bentonite ultra-fine mill is more than twice that of jet mill, stirring mill, and ball mill;

●Long service life of wearing parts

The grinding rollers and grinding rings are forged with special materials, which greatly improves the durability. In the case of the same fineness of materials and finished products, the service life of the vulnerable parts of the bentonite ultrafine mill is 2-3 times longer than that of the impact crusher and turbo crusher, generally up to more than one year; this The service life of this kind of pulverizer can reach 2-5 years when processing calcium carbonate and calcite;

●High safety and reliability

Because there are no rolling bearings and screws in the grinding cavity, there is no problem of easy damage to bearings and their seals, or damage to the mill due to loose screws;

●High product fineness

The fineness of the finished bentonite powder processed by this mill can reach D97≤5μm at one time;

●Small environmental pollution

The use of environmentally friendly pulse dust collector and muffler in the mill greatly reduces the pollution of the surrounding environment by dust and noise.

bentonite ultrafine grinding machine

4. Technical parameters of bentonite mill (three-ring medium-speed superfine mill):


Model
Ring Diameter(mm)
Ring Number(layer)
Roller Number(piece)
Main Shaft Speed(r.p.m)
Input Size(mm)
Finished Size(μm/mesh)
Capacity
(t/h)
Overall Dimension(L*W*H,m)
Powder(KW)
HGM80
800
3
21
230~240
≤20
5-47
0.4-4.5
13.9x4x6.2
145-165
HGM90
930
3~4
24~32
200~220
≤20
5-47
0.6-6.5
14.7*4.8*7.2
185-204
HGM100
1035
3
27
180~200
≤20
5-47
0.7-7
18*4.6*8.6
263
HGM100A
1035
4
34
180~200
≤20
5-47
1-8.5
18*4.6*8.6
263-290
HGM125
1300
4
40~44
135~155
≤20
5-47
1.5-12
14*9*10.25
380-430
HGM1680
1680
4
30~40
120~130
≤20
100-9
3.8-30
26.3*7.5*11.9
600-700
